Turblown Engineering Casts new External Wastegate FD3S Turbo Manifolds

Turblown Engineering has started the casting process of their long runner T4 twinscroll turbo manifold. The current design was developed back in 2013, after 13 years of testing 20+ designs. These designs ranged from low mount, high mount, bottom mount, different lengths, tubing sizes, flanges(vband, T4 open/divided etc) ,waste-gate merge angles etc. T4 flange placement over the years did not change much for the long runner design as its position is optimized to fit the vast majority of turbos, inter-cooler kits, idler pulleys, intake manifolds, and RHD steering racks etc.

The biggest change back in 2013 was the waste-gate placement & number of waste-gates.  The new twin waste-gate, fully divided (twin-scroll) design separated the pulses between rotors, which increased power and reduced turbo lag. It increased power because the rotors were no longer allowed to cross communicate. There is a point in the exhaust stroke where one rotor is experiencing a high exhaust back pressure pulse, and the other rotor is at a lower pressure pulse. The higher exhaust back pressure pulse will move into the lower pressure rotor’s chamber on a turbo manifold that is not fully divided. This cross communication increases the amount of exhaust dilution into the following intake stroke, which decrease fresh cylinder fill in the next intake stroke. This decreases VE, and power. One can read more in depth converge including a back to back dyno test here by Dsport Magazine.  . Full Race also had a very nice article about twinscroll vs single scroll turbo systems including in depth technical analysis. These articles are about piston engines, but the exact same concept applies to the rotary engine.

Exhaust velocity slows down on a single waste-gate turbo manifold when the high pressure pulse comes out one main runner, flows into the waste-gate runner, and then flows up the other rotors waste-gate runner/main runner, and rotor chamber( on one of the low pressure pulses).  Any time there is a sudden increase in volume in an exhaust system, this decreases velocity. A decrease in velocity adds lag. Here is a quote from Borgwaner’s EFR technical bulletin;

Twin-scroll housings are becoming very popular for performance use, and for good reason. By dividing the manifold and turbine housing into two flow paths, the engine firing order can be made to “alternate” the flow all the way to the turbine wheel inlet. The engine blow-down pulse is generated when the exhaust valve opens. During the blow-down, the engine power cylinder is still at very high pressure as a residual of combustion and the power stroke. This initial “pop” of energy travels at very high speed down the manifold runner, through the volute, and impacts the wheel. For this reason, the stream is very much a “pulsed flow” and the divided nature of the system simply amplifies and arranges those pulses. The obvious result is quicker spool and better low-end boost response.



           The new 347SS cast manifold is better in every way compared to the previous welded version or any knock off of it;



  • Cast 347SS
    This manifold is cast from 347SS which is far superior to 304SS. Not only does 347SS last longer at elevated temperatures, there are no welds like those found in traditional turbo manifolds. When a welded turbo manifolds fails, they almost always break at or next to the welds. A broken turbo manifold even if it features a life-time warranty can be a serious hassle to remove and send back in for repair, especially if you miss a race because of it. We have weighed our cast manifolds vs our welded units and they actually weigh a few ounces less! Since these manifolds are investment cast, they are less than 1/2 the thickness of your traditional cast iron turbo manifolds, and therefore do not retain as much heat as cast iron manifolds. There are zero downsides to this casting process vs welding. We have not had a single failure on our IWG cast manifolds.
  • Tapered Main Runner Inside Diameter
    This manifold’s inside diameter slowly tapers down as it reaches the T4 flange. This process is only possible with a cast manifold. A traditional welded manifold does not change inside diameter. This tapering process is identical to the volute of a turbine housing. By tapering down it increasing velocity, and speeds up the exhaust flow and increases boost response.
  • CNC machined flanges
    All flanges are CNC machined to be perfectly flat. Most turbo manifolds are just belt sanded flat, which is not as accurate as CNC machining. The wastegate flanges typically leak slightly on a welded manifold, even if the face is belt sanded flat. The outside vband flange, and inner wastegate seat dimensions do not stay true because of the welding process.
  • Smoother transitions
    Welded turbo manifolds require hours of hand porting with a die grinder, and sanding drums to contour the change in shape from a round tube to a square T4 flange. We have taken this step, just like the rest of the manifold, to an even higher level of quality. The investment casting process makes every transition seamless. Welded manifolds are made from short pieces of cast elbows. Every time there is a joint it is welded, there can be a slight disruption on the inside diameter if the pipe is not perfectly matched, or the weld penetrates all the way through. This disruption is eliminated with the casting process resulting in a better flowing turbo manifold.

Here you can see the welded manifold, and then it being scanned into CAD. After the model was scanned, it was improved. Here you can see smoother transitions at both flanges, and each weld point.

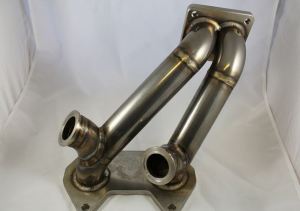

Turblown manifold

Turblown Welded Rx7 Twinscroll Manifold

Turblown Cast Twinscroll T4 Turbo Manifold

Revised welded model stage 1





After the first stage of revisions, you can now see the main runner inside diameter was changed and long gradual taper added. Previously the welded manifold was made from schedule 10 1.5″ pipe which has an inside diameter of 1.682″. The next size up in schedule 10 pipe is 2″, which has an inside diameter of 2.157″. We have previous found that using this size pipe is just too large for 99% of applications. We built two identical cars with one being 2″ schedule 10 pipe, and one 1.5″ schedule 10 pipe. The larger schedule 10 was much laggier, and a much smaller power band, with no gains in top end peak performance. Only a T6 frame turbo running at drag car power level( over 550+rwhp per rotor) benefits from this configuration.  What you see below combines the best of both worlds to allow maximum velocity and power levels for a T4 frame turbocharger. The runners start off at 2″ ID, and taper down gradually to 1.682″. This mimics the exact same casting process found inside that of a turbine housing.

Turblown Twinscroll Cast FD3S Rx7 Single Turbo Manifold

Turblown Twinscroll Cast FD3S Rx7 Single Turbo Manifold

We have started a group buy for both, the manifold, and or any additional parts( full or partial turbo kits). The wax portion of the mold is almost finished, and by this time next month the samples should be in for inspection. After this process is complete 100 units will be casted.
